Ship to Qatar Trailer type one man hydraulic ladder lift

FOB Reference Price:Get Latest Price
US $3,000-20,000 / Set | 1 Set/Sets aluminum telescopic lift platform (Min. Order)
Supply Ability:
10 Set/Sets per Month
Port:
qingdao
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
JIURUI, JIURUI
Model Number:
SJYL0.2-8
Lift Mechanism:
Telescoping Lift
Lift Drive / Actuation:
Electric Motor
Power:
1.5kw
Rated Loading Capacity:
200kg
Min. Lifting Height:
6m
Max. Lifting Height:
8 dual-mast
Table Size:
1200*600
Overall Dimensions:
1400*900*1980
Weight:
510kg
Certification:
CE ISO
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
SJYL0.2-8
Lifting height m:
8 dual-mast m
Load capacity:
200kg
Platform size (L*W)mm:
1200*600
Dimension (L*W*H)mm:
1400*9010*1980 mm
Power kw:
1.5
Weight kg:
510kg
Color:
red, blue, yellow
Certificate:
CE ISO
Packaging & Delivery
Packaging Details
plywood for outside and plastco for inside
Delivery Time
8 working days

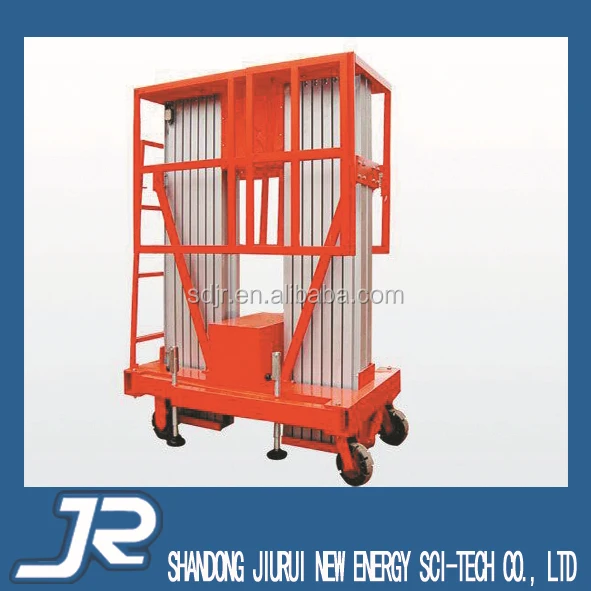

Aluminum telescopic lift platform



specifications:



alumiunm alloy lifing platform

1.Beautiful shape, small volume, light weight, flexible operation
2.Easy to implement
3.Landing a smooth, safe and reliable



characteristics :



The series of products use high-strenght aluminum alloy materials,and power source can choose electric, manual battery or diesel control device can be  installed according to can according to the users' needs,which has advantages including small occuoied space.





Features:





 1)Adopting  high strength aluminum molding material keeps deflecting degree and swing tiny.



 2)Equipped with overload safety protection device



3) Equipped with safeguard valve to avoid hydraulic pipe rupture



4)It installs the emergency manual hydraulic valve to cope with power cut.



5)It can add stretch platform to extend to the desired place  when  the platform length isn’t enough.



6)Double chains greatly improve the safety factor.







aluminum  alloy lifting platform model:







Model
Lifting height
(m)
Lifting weight(kg)
Working table size (length × width)
mm
Maximum dimension (length * width * height)
mm
power(KW)
NetweightKg
YBC0.2-8
8
200
1200*600
1400*900*1980
      1.5
600
YBC0.2-10
10
200
1450*600
1900*950*1980
1.5
700
YBC0.2-12
12
200
1550*600
2000*1000*1980
1.5
810









Safety:



1, All the lift have guard rails to guarantee safety of people and cargo.

2, The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works

3, The lift before leaving our factory are passed more than twice test.

4, Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.



Supply capacity:



We have regular model of lift kept in our warehouse, they can be delivered an soon as the order comes.
